Manufacturing Process & Quality Control

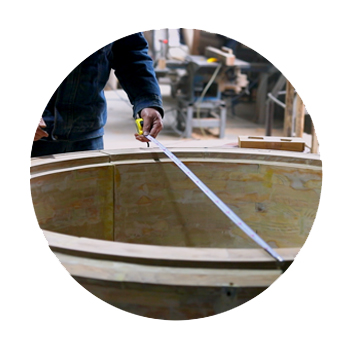

After drawings are confirmed, pattern-making will be immediately started according to the drawings at our pattern-making shop.

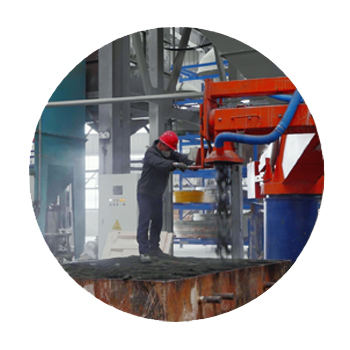

After CPSS(Casting Process Simulation System) is carried out, sand molds will then be made. The cavity is ensured to be as solid & clean as possible to avoid any possible inclusion.

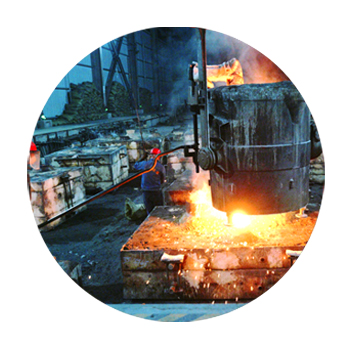

Raw materials for melting are purchased under high standards. Temperatures are carefully controlled during the whole process to achieve find grain structure for the casting. Samples are taken to verify material analysis and adjust if necessary. Inspected samples will be kept for at least 3 years for traceability.

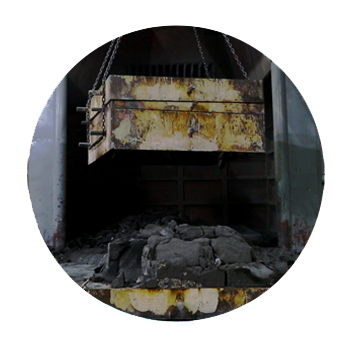

This process can also be called casting-cleaning. After initial cooling, sandbox will be opened, risers and runners will be removed and the castings be cleaned. Different size castings require different cooling time.

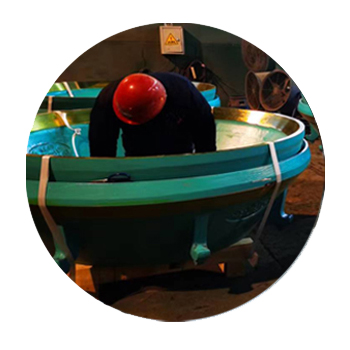

Finished products are packed with steel pallets, convenient for forklift handling, complying with international standards for land, railway, sea and air transportation.

The products will be painted according to categories, or per your requirements.

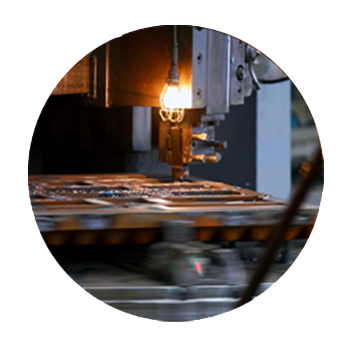

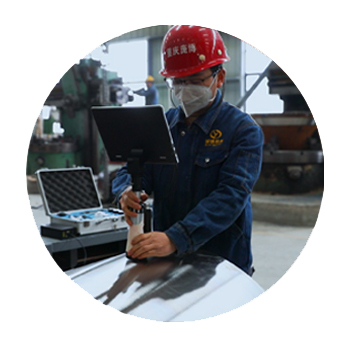

After rectified and polished, Castings will be machined strictly to the drawings for perfect fitment to the machine. Then the QC department will carry out dimensional inspection and submit the dimensional inspection report.

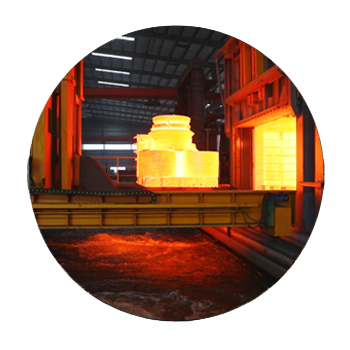

Temperatures are strictly controlled when heating. Spaces between castings will be ensured to allow uniformly heating and fully contact with water when quenching. Quenching operation are carried out within 30 seconds after castings are withdrawn from the oven.

Quality Assurance

High standard of raw material sourcing to keep the quality at the very beginning. Every manufacturing process, from drawing-checking, pattern-making, casting, to heat-treatment and machining, etc, is strictly controlled. More importantly, our foundry is equipped with a group of well-trained staff, with long established expertise in casting.

Lead Time & Delivery

With thousands of ready-made patterns in the inventory, we can put them into production directly, shortening the lead time and saving your pattern-making cost. Finished products are packed to international standard for sea, air, railway & truck transportation. Door to door service is available, which means we can delivery the products to your warehouse.

Transportation

Located in Chongqing, the company enjoys a very sophisticated logistic system. Firstly, Chongqing Jiangbei International Airport (IATA: CKG, ICAO: ZUCK) is one of the biggest airports in China. Secondly, being the start of the Chongqing–Xinjiang–Europe Railway, railway transportation is available to Kazakhstan, Russia, Belarus, Poland, and finally Duisburg, Germany. Thirdly, Inland transportation to Shanghai Port takes just about 3 days.

About Us

Chongqing Panglei Machinery Technology Co., Ltd is an ISO certified foundry, specializing in wear-resistant castings. Material options: Austenitic Manganese Steels, High Chromium White Cast Irons & Alloy Steels of various grades. The company, covering about 26,680 m², is located at Beidu Aluminum Industrial Park, Gunan street, Qijiang District, Chongqing City, and designed with annual capacity of 15, 000 metric tons. Our main products are Crusher Spare and Wear Parts for all prominent industry brands including Finlay, Sandvik, Fintec, Extec, Striker, McCloskey, Metso, Pegson and Powerscreen, etc.
